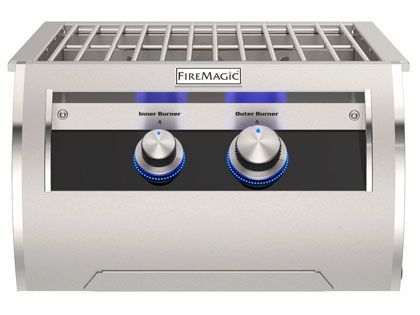

Fire Magic Echelon Dual-Ring Power Burner – 60,000 BTU, Built-In, 304 SS

Description

Unleash high-heat culinary power with the Fire Magic Echelon Power Burner. This luxury built-in side unit features dual ring burners delivering a total of 60,000 BTU (3,000–15,000 BTU inner ring, 45,000 BTU outer ring), backlit controls, a 10-inch heat collimator for focused flame intensity, and a stainless steel lid. Designed for wok cooking, turkey frying, or rapid stockpot boiling, it integrates seamlessly into Fire Magic Echelon or Aurora grills for unmatched performance and elegance.

Key Features

• Dual-ring brass burner: Inner 3k–15k BTU + Outer 45k BTU = 60,000 BTU total
• Back-lit control knobs for safe, stylish operation at night
• 10″ diameter Flame Collimator focuses intense heat in the center 25% of unit
• Stainless steel protective lid included
• Plugs into Echelon/Aurora grill transformer; power switch for easy control
• Available with stainless steel or porcelain cast iron cooking grid

Specifications

• Model / MPN: 19-6B1N-0 (Stainless Grid) / 19-6B2N-0 (Porcelain Grid) for NG; 19-6B1P-0 / 19-6B2P-0 for LP
• Fuel Type: Natural Gas or Liquid Propane
• Construction: 304 Stainless Steel housing, brass burners, optional cast grates
• Total Output: 60,000 BTU
• Heat Focus: 190 BTU/sq in via Flame Collimator
• Dimensions (Overall): ~20.75″ W × 23.75″ D × 12″ H
• Cut-Out Dimensions: 19″ W × 18 ¾″ D × 11 ½″ H
• Weight: Approx. 62 lbs

Warranty

• Lifetime Limited Warranty on housing, burners, grids, heat elements, and valves
• 5-Year Warranty on flame tamers
• 3-Year Warranty on side burners & accessories
• 1-Year Warranty on ignition and lighting components

Compliance Notes

• This is a non-electrical appliance—UL/ETL certification not required
• Includes California Proposition 65 safety notices where applicable
• Installation manual and cut-out template included with the product
