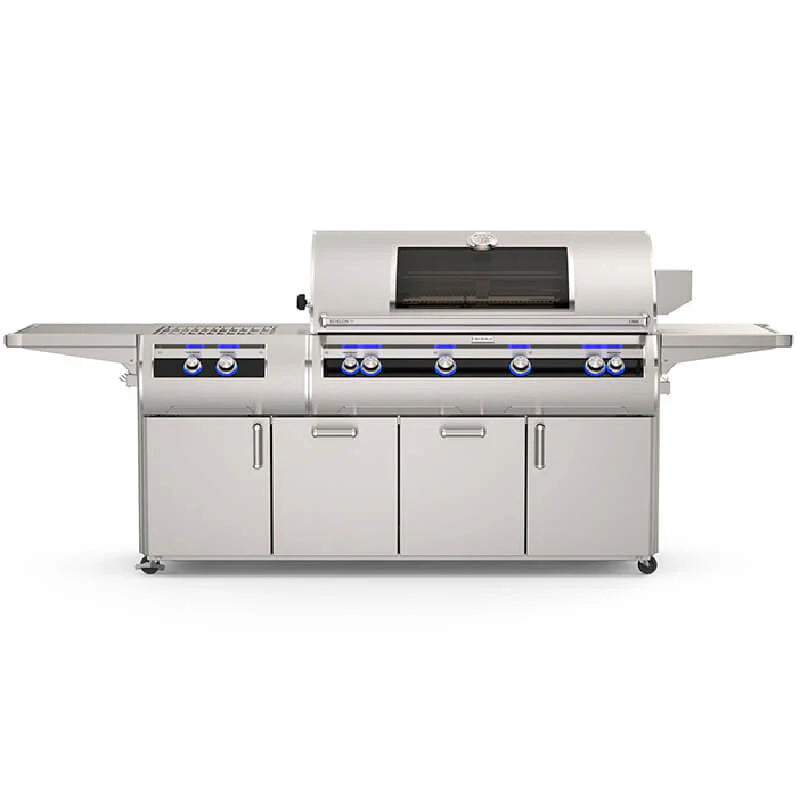

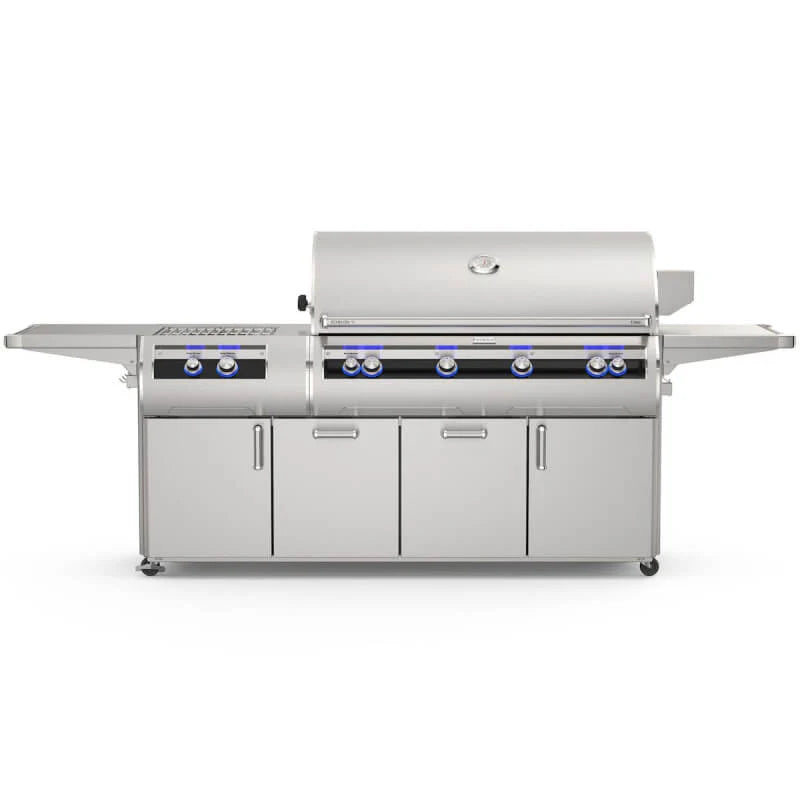

Fire Magic Echelon Diamond E1060s 48″ Freestanding Grill – Digital Controls, Magic Window

Description

The Fire Magic Echelon Diamond E1060s 48″ Freestanding Grill redefines luxury grilling with advanced features and elegant design. Equipped with digital touchscreen control, blue-lit knobs, and the “Magic View Window,” it’s engineered for cooking excellence and user convenience. Includes a high-power infrared side burner, robust stainless steel construction, and displayed photos for visual satisfaction while grilling.

Key Features

• Modern black glass control panel with digital touchscreen and optional Bluetooth remote
• Diamond Sear stainless steel cooking grids for even heat and superior searing
• Infrared backburner and heavy-duty rotisserie for rotisserie cooking
• Magic View Window to monitor food without lifting the lid
• Blue-backlit knobs and angled halogen internal lights for night grilling
• Integrated digital thermometer and optional meat probe for precise temperature control
• Built-in power side burner for convenient side-dish cooking

Specifications

• Brand / Series: Fire Magic – Echelon Diamond
• Model / MPN: E1060S-9E1N-51-W (Digital control, Magic Window optional)
• Configuration: Freestanding (Cart-based)
• Fuel Options: Natural Gas (standard) | Propane (optional)
• Main Burners: 4 cast stainless steel
• Total Main BTUs: 112,000 BTU
• Cooking Grid Size: 48″ W × 22″ D (Primary: 1,056 sq in)
• Warming Rack: 48″ W × 8″ D (384 sq in secondary area)
• Total Cooking Area: Approximately 1,440 sq in
• Backburner: Infrared, 22,000 BTU
• Power Side Burner: 60,000 BTU
• Ignition: Hot Surface with 110V required
• Lighting: Three internal halogen lights + blue-lit knobs
• Construction: 304 stainless steel barrel hood, cart, and doors
• Mobility: Heavy-duty caster wheels for easy movement

Warranty

• Lifetime limited warranty on cast stainless steel burners and stainless steel housing
• 15 years on brass components, backburner assemblies, and manifold assemblies (excluding ignition parts)
• 3 years on side burners and other non-ignition components
• 1 year on electronic components including lights and thermometers

Compliance Notes

• Rated per ANSI Z21.58-2015 / CSA 1.6-2015 for outdoor, portable, freestanding grills
• UL/ETL certification not required for non-electrical ignition system, but grill meets recognized safety standards
• Includes California Proposition 65 warning where required

Manual / Spec Sheet PDF

Echelon Diamond Stand-Alone Grill Owner’s Manual and Installation Guide (PDF)
