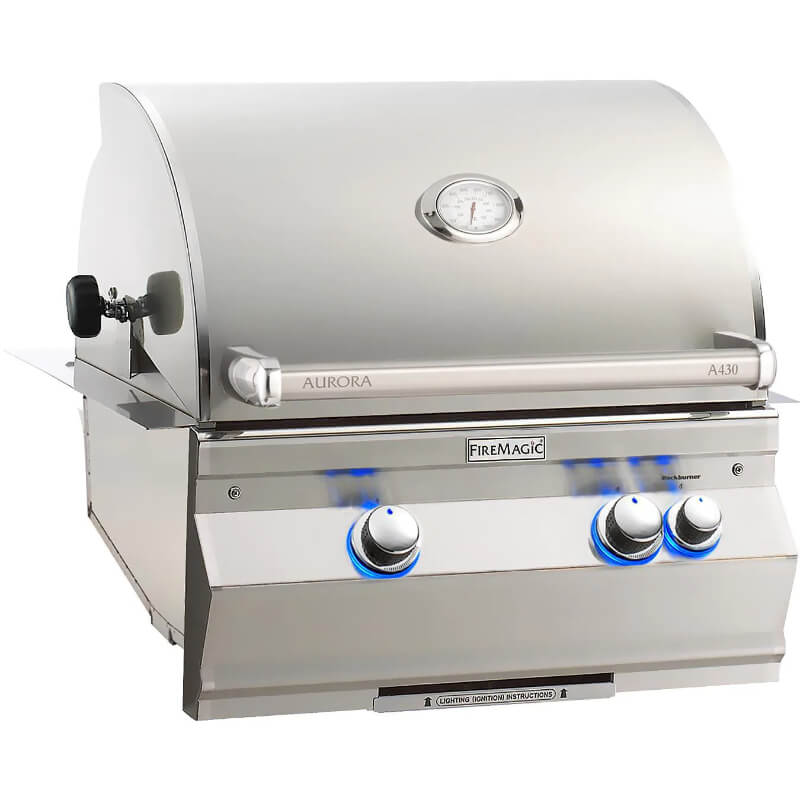

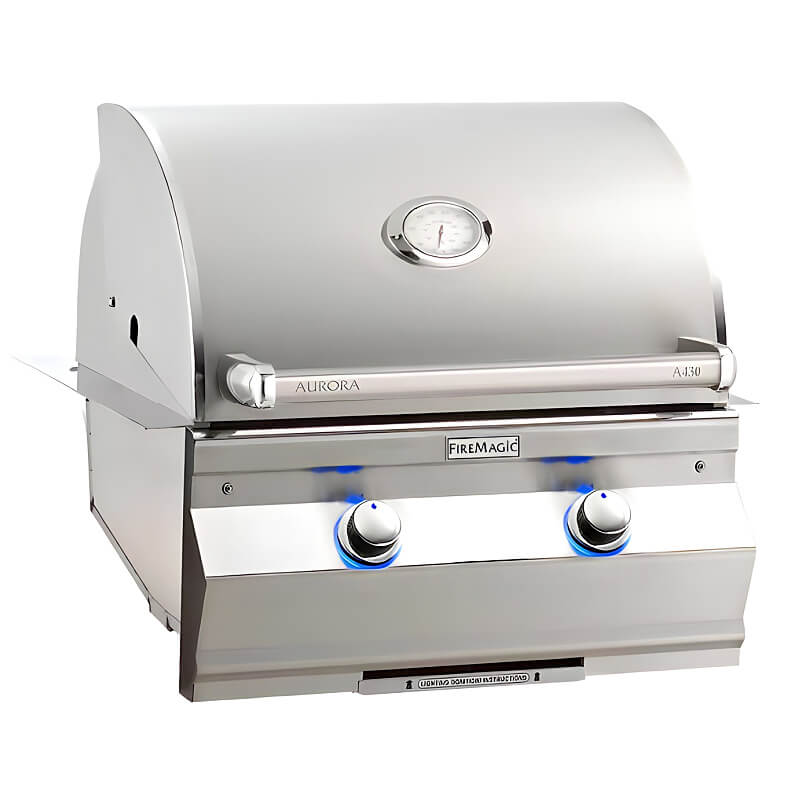

Fire Magic Aurora A430i 24″ Built-In Gas Grill w/ Analog Thermometer

Description

The Fire Magic Aurora A430i Built-In Gas Grill combines precision craftsmanship with compact performance. Featuring patented Diamond Sear cooking grids, powerful E-shaped cast stainless steel burners, and a spring-assisted double-walled hood, it delivers even, reliable heat across 624 sq in of grilling space. With interior halogen lights, blue LED control knob illumination, and an easy slide-out grease tray, this USA-made grill is designed for premium backyard cooking.

Key Features

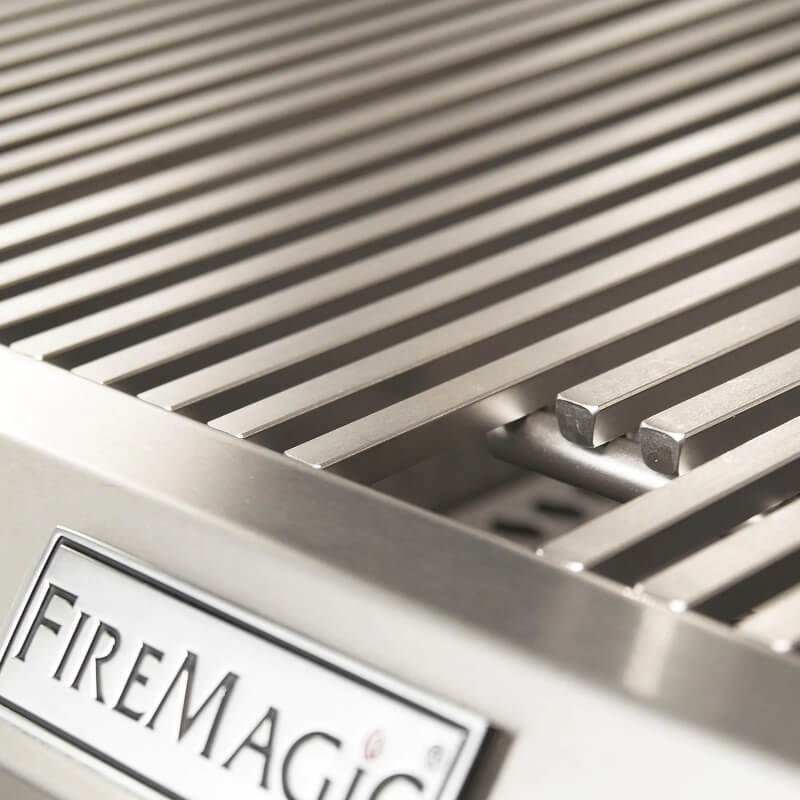

• Patented Diamond Sear cooking grids provide superior searing

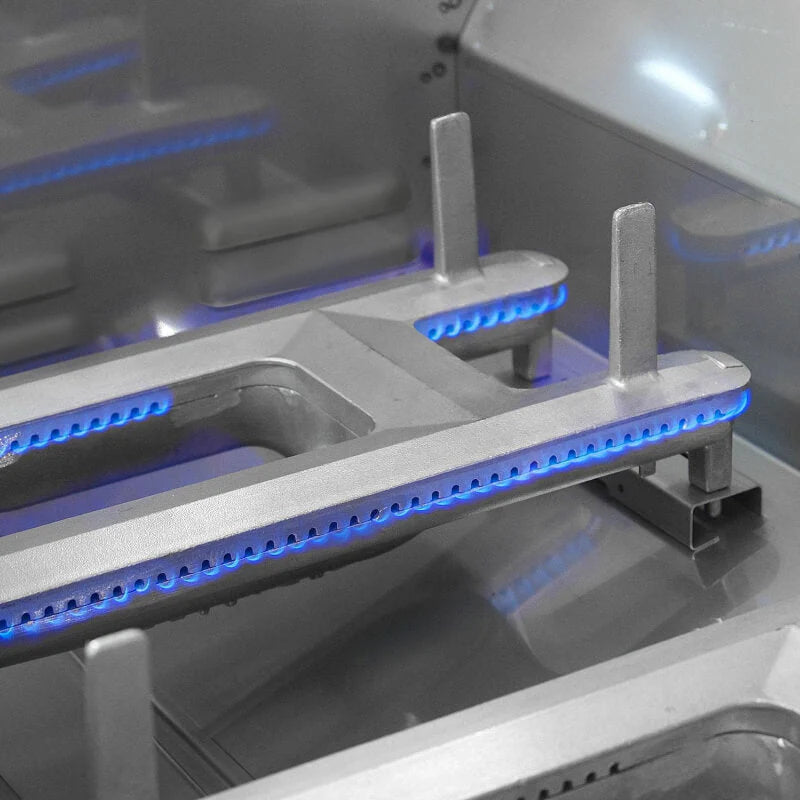

• Two ¼″ thick E-shaped cast stainless steel burners — 50,000 BTUs total
• 624 sq in total cooking surface (432 sq in main, 192 sq in warming rack)
• Hot Surface ignition system with backup flash tubes

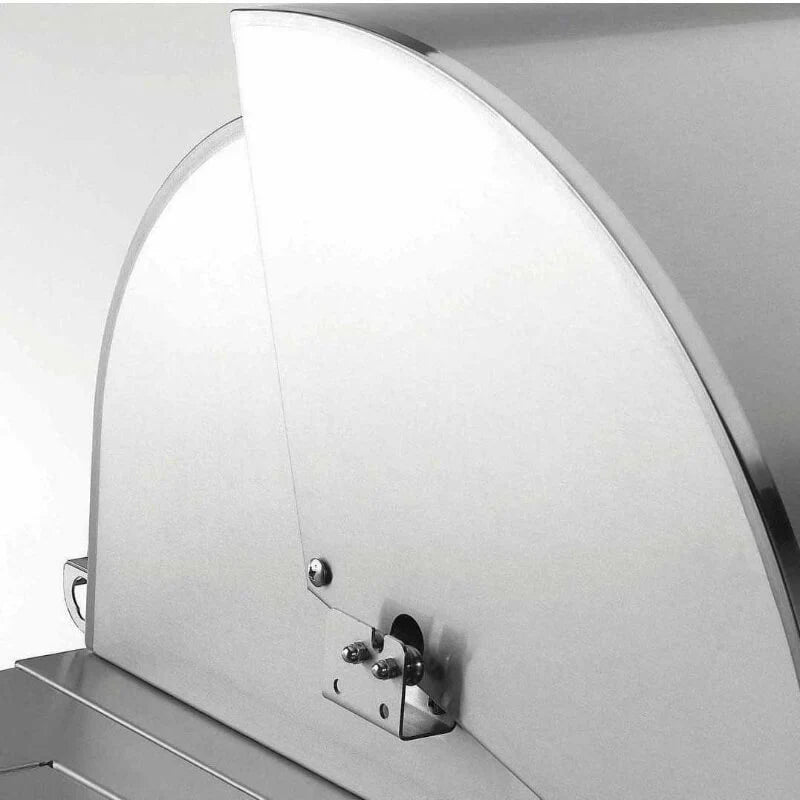

• 90° double-walled spring-assisted hood for heat retention
• Blue LED knob lights and dual halogen interior light

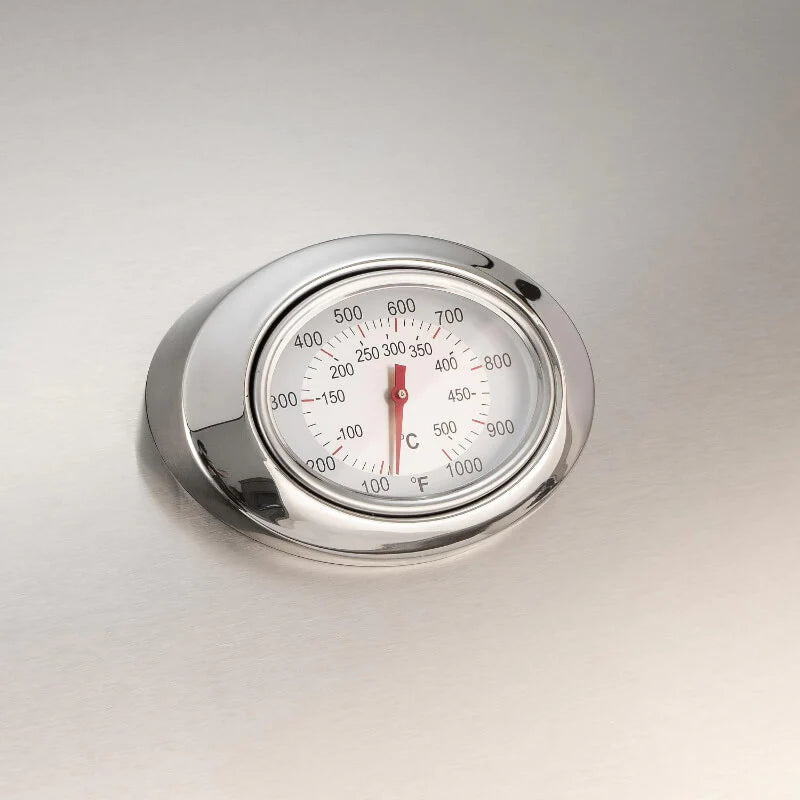

• Analog thermometer for precise temperature monitoring
• Slide-out grease tray for easier cleaning
• Made in the USA

Specifications

Model: A430i
Exterior Material: 304 Stainless Steel
Configuration: Built-In
Width: 30″
Depth: 26.75″
Height: 25.125″
Weight: 175 lbs
Cut Out Depth: 19 1/2″
Cut Out Height: 11 1/2″
Cut Out Width: 25 1/2″
Total BTUs: 50,000
Burner Material: 304 Cast Stainless Steel
Burner Type: E-Shaped Burners
Number of Burners: 2
Grilling Surface Dimensions: 24″ × 18″
Main Grilling Area Surface: 432 sq in
Secondary Grilling Area Surface: 192 sq in
Total Grilling Area Surface: 624 sq in
Burger Count: 15
Cooking Grate Material: Stainless Steel
Cooking Grate Type: Diamond Sear Cooking Grids

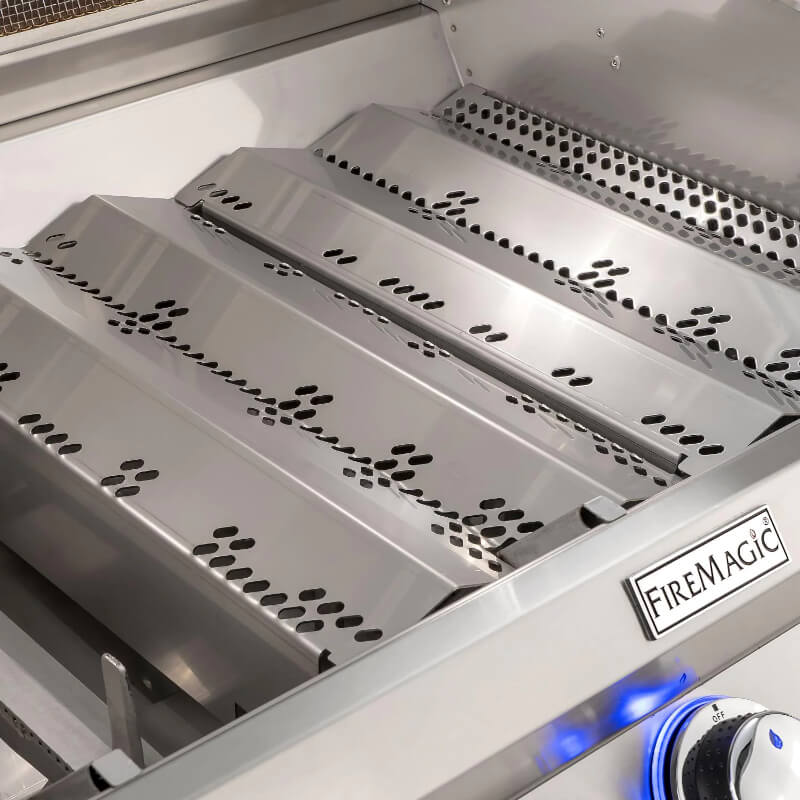

Flame Tamers: Included
Infrared Backburner: None
Rotisserie Kit: Optional
Grill Lights: Internal / External Lights
Grill Hood Type: 90° Double-Walled Grill Hood
Spring Hood: Yes
Thermometer: Analog

Certifications

• Certified to ANSI Z21.58 / CSA 1.6 standards for outdoor gas grills.
• Installation must comply with ANSI Z223.1/NFPA 54 (U.S. National Fuel Gas Code) or CSA B149.1 (Canada).

Warranty

• Lifetime Warranty: Burners, cooking grids, housing, and stainless components
• 15-Year Warranty: Brass valves, manifolds, backburner assemblies (non-ignition)
• 1-Year Warranty: Ignition system, knobs, electronics, lighting, and accessories

User Manual / Spec Sheet (PDF)

Owner’s / Installation Manual (PDF)
