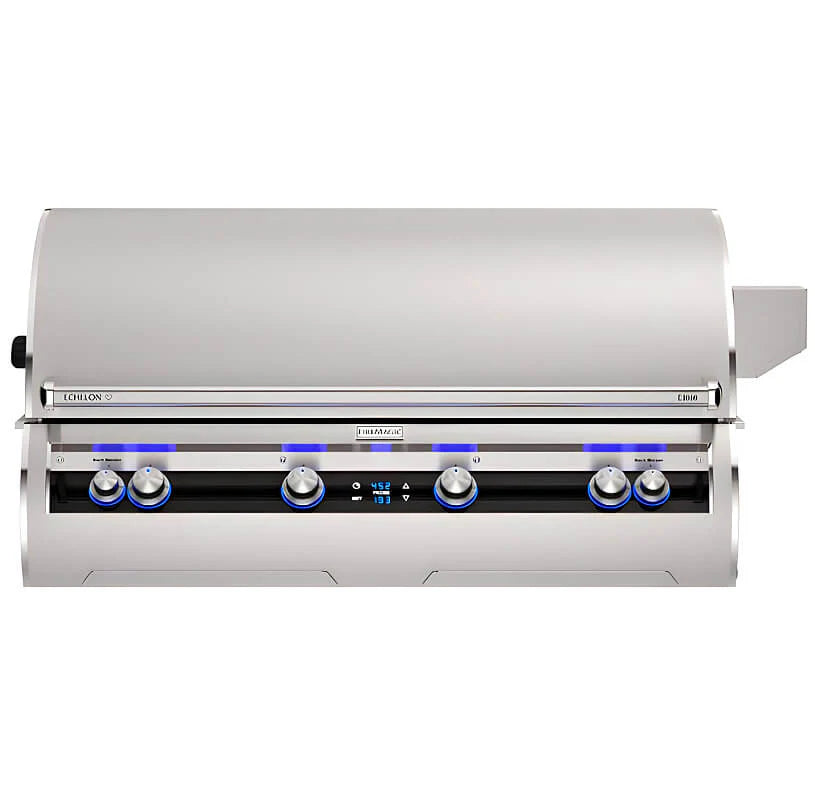

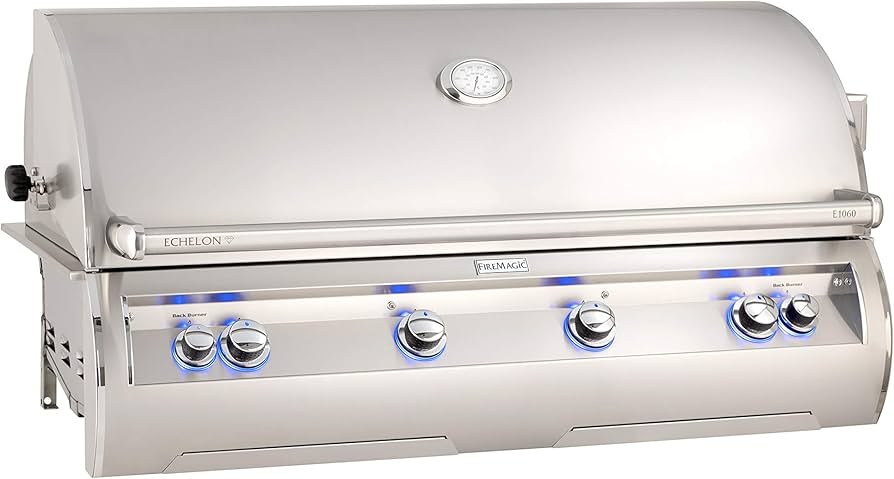

Fire Magic Echelon Diamond E1060i 48″ Built-In Gas Grill Head w/ Digital Thermometer & Back-Burner
Description
The Fire Magic Echelon Diamond E1060i 48″ Built-In Gas Grill Head combines cutting-edge design with exceptional function. With over 1,050 square inches of grilling area, digital control, cast stainless steel E-burners and a rotisserie back-burner, it’s built for grilling perfection. The sleek glass control panel, halogen lights, and premium stainless construction bring luxury and durability to any outdoor kitchen.
Key Features
- Four cast stainless steel “E” shaped main burners delivering 112,000 BTU for high-heat performance
- Dual recessed stainless steel infrared back-burners totaling 22,000 BTU for rotisserie or searing enhancements
- Digital thermometer display with probe; optional Bluetooth remote monitoring from smartphone; sleek black glass control panel with back-lit safety knobs
- Patented Diamond Sear cooking grids for faster searing and even heat distribution over the cooking surface
- Three angled halogen internal lighting lamps for night grilling visibility
- Hot surface ignition system (120 VAC / 12 Volt) with flash tubes; engineered for reliable starts

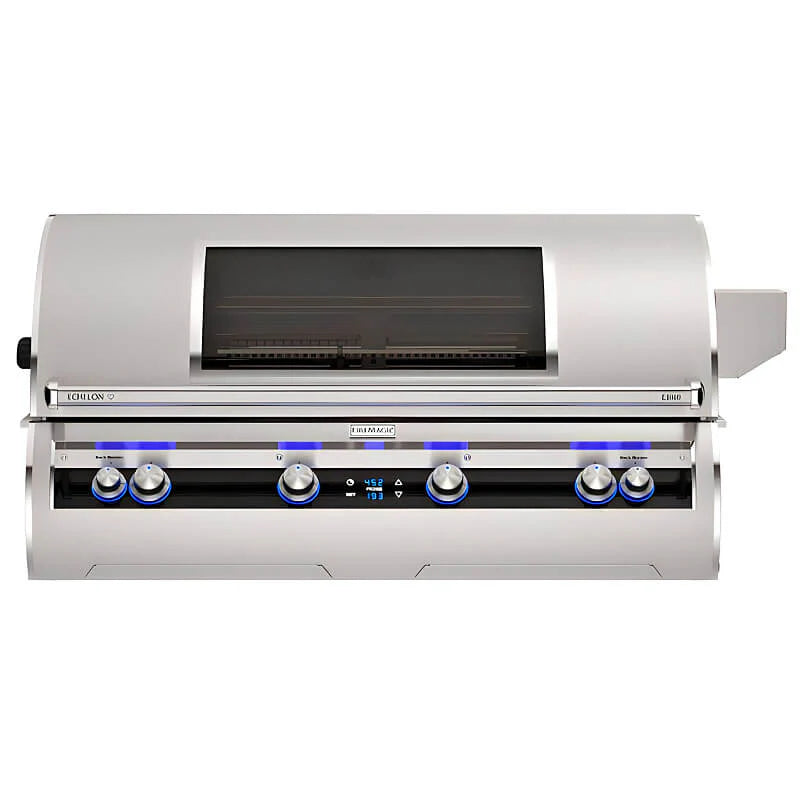

- Stainless steel flavor grids, flame tamers, rod grills; optional Magic View Window to see inside without lifting hood
Specifications
Model (MPN): E1060i-9E1N / E1060I (Digital Version)
Fuel Type: Natural Gas (also available Propane variant)
Configuration: Built-In Gas Grill Head
Main Burners: 4 Cast Stainless Steel “E” Burners (304 grade)
Main Burner Output: 112,000 BTU total
Backburners (Infrared): 22,000 BTU total (2 × 11,000 BTU)
Cooking Surface: 48″ × 22″ → ~1,056 sq. in.
Warming Rack / Secondary Area: 48″ × 8″ (~344 sq. in.)
Total Cooking Area: ~1,056 sq. in. (not counting warming rack separately)
Cut-Out Dimensions: 50″ W × 23½″ D × 11½″ H
Ignition / Control: 120 VAC / 12 Volt Hot Surface Ignition with flash tubes; digital touchscreen or panel-based thermometer and meat probe for digital version
Lighting: 3 angled halogen internal lamps; back-lit control knobs for visibility and style
Warranty: Lifetime limited warranty on cast stainless steel burners, stainless steel cooking grids & housing; other parts per Fire Magic’s tiered warranty schedule
Certifications
Meets safety and installation regulations under ANSI Z21.58 / CSA 1.6 standards for outdoor gas grills. Installation must follow local building codes and Fire Magic’s instruction manual.
