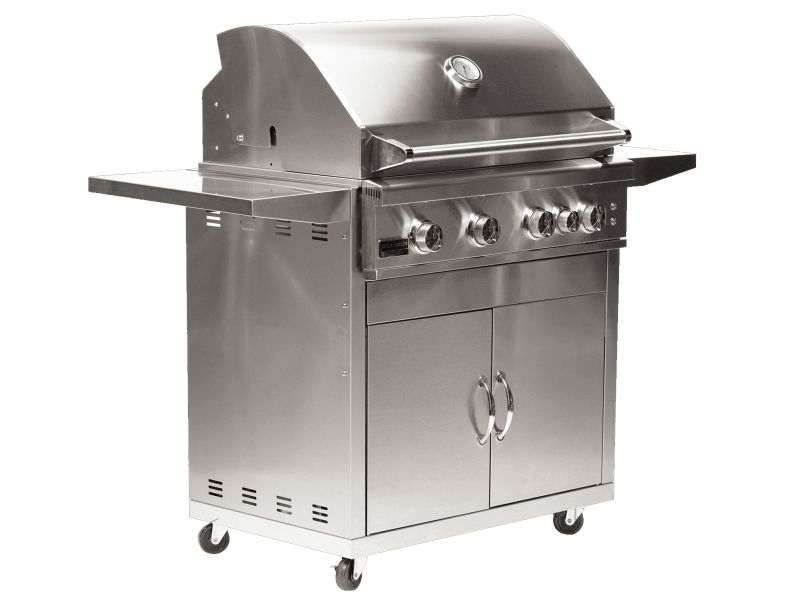

Broilmaster B-Series Deluxe 32″ Marine Grade Freestanding Grill – Rear Infrared Rotisserie, 56,000 BTU

Description

Crafted of ultra-durable 316 marine-grade stainless steel, the Broilmaster B-Series Deluxe 32″ brings power, precision, and coastal-rated corrosion resistance. Four 14,000 BTU cast stainless burners (56,000 BTU total) paired with a robust rear 14,000 BTU infrared rotisserie burner, multilevel stainless cooking grids, and a double-walled welded lid deliver performance, versatility, and consistent heat. Handy features include illuminated control knobs, interior work lighting, and adjustable heat zones with a slide-out drip tray for cleanup. Fully portable on a stainless-steel cart with fold-down side shelves.

Key Features

• Constructed from corrosion-resistant 316 marine-grade stainless steel—ideal for coastal climates

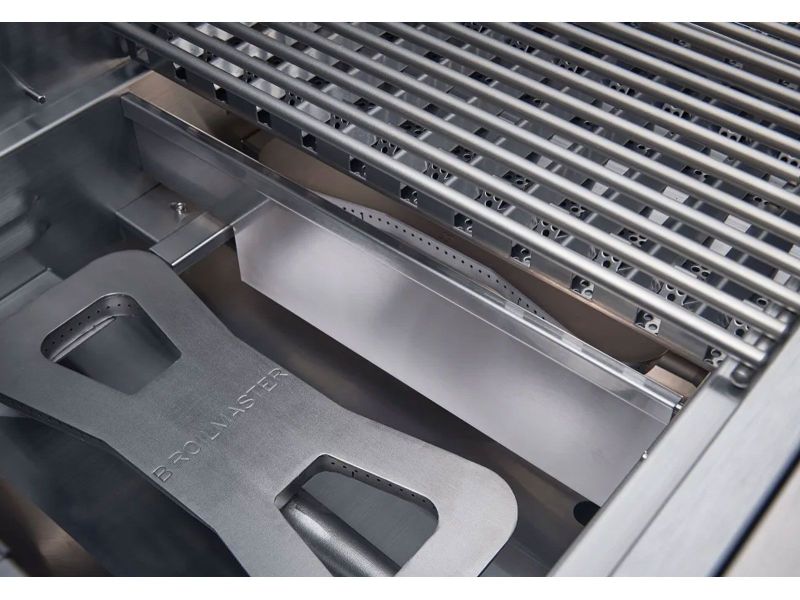

• Four 14,000 BTU cast stainless Bow-Tie main burners (56,000 BTU total)

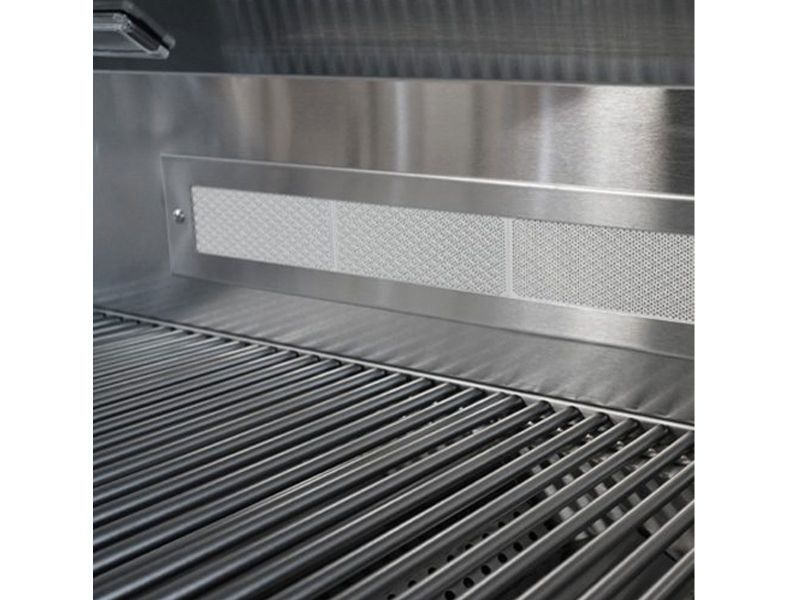

• 14,000 BTU rear infrared rotisserie burner (ceramic, optional)
• Multilevel positioning 304 stainless cooking grids for flexible heat control
• Double-walled, welded, polished lid preserves heat and durability

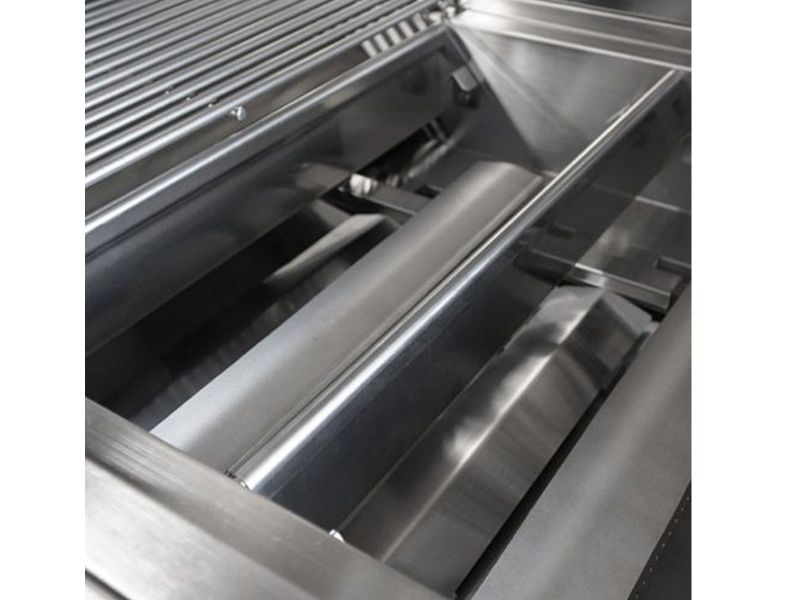

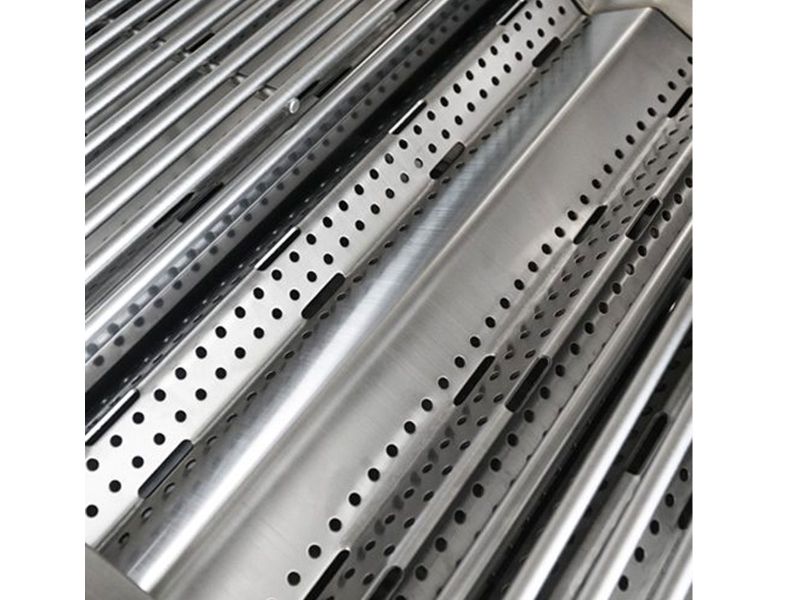

• Slide-out drip tray and flare-control vaporizers prevent flare-ups and ease cleaning
• Heat-zone dividers enable multi-temp cooking areas on 682 sq in total surface

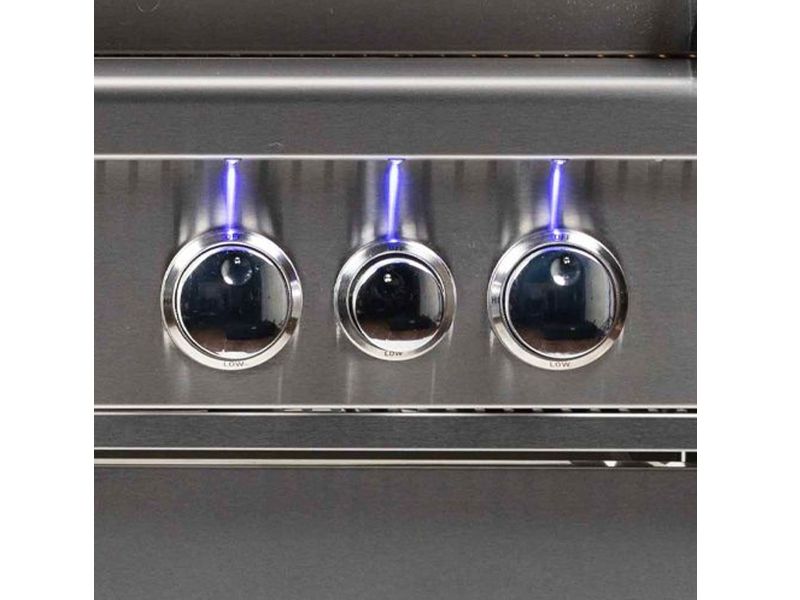

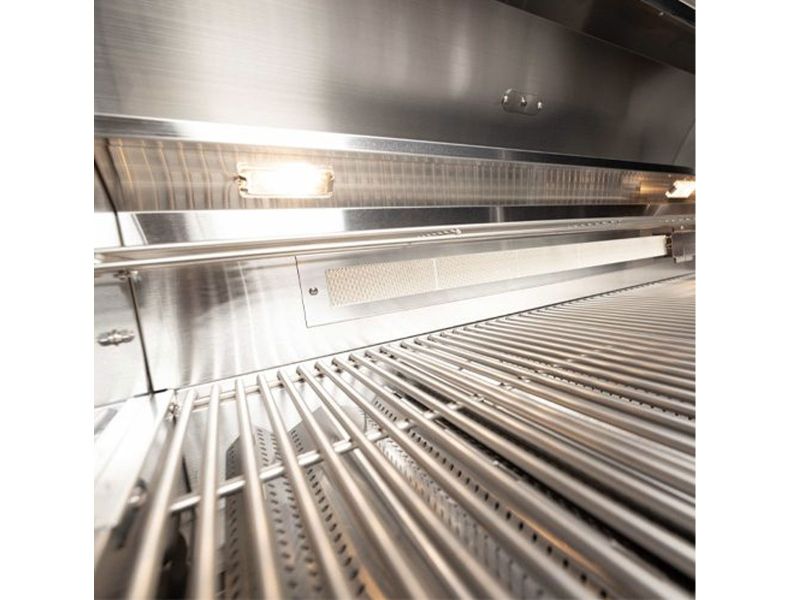

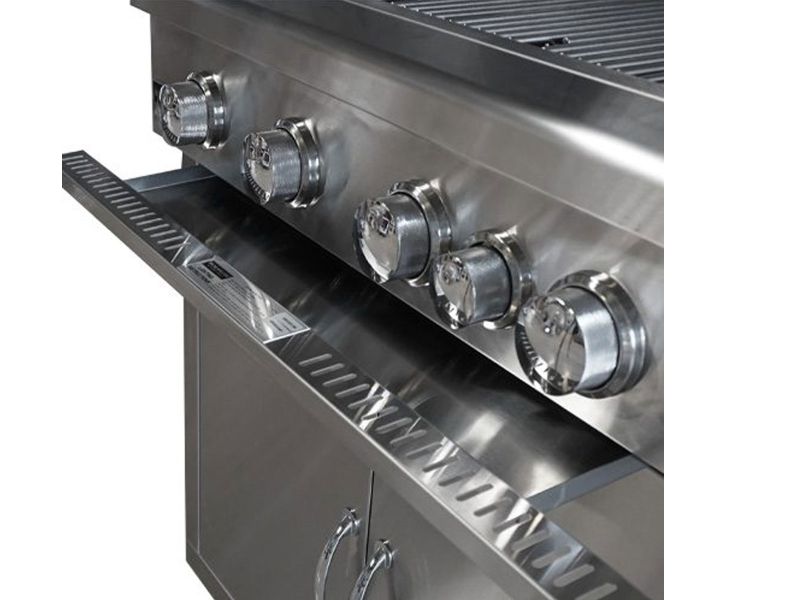

• Interior halogen work lights plus blue LED control panel illumination (12V)
• Flame-thrower ignition—battery-free, instantly reliable

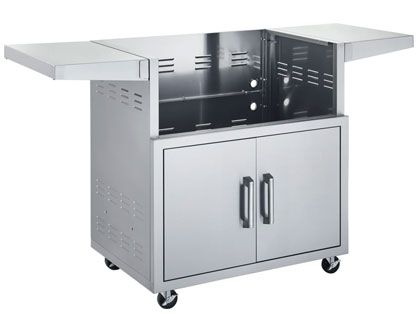

• Fully assembled on 304 stainless cart with fold-down side shelves and storage access

Specifications

• Brand / Series: Broilmaster – B-Series Deluxe Marine Grade
• Model / MPN: BSB324MGN (NG) / BSB324MGP (LP) + BSACT32 cart (portable configuration)
• Configuration: Freestanding stainless cart with side shelves
• Fuel Type: Natural Gas or Propane (LP conversion available)
• Main Burners: 4 × 14,000 BTU cast stainless = 56,000 BTU
• Rear Rotisserie Burner: 14,000 BTU (ceramic infrared)
• Total Cooking Area: ~682 sq in
• Cooking Grids: Multilevel stainless steel
• Ignition: Flame-thrower (push-and-turn, no batteries)
• Lighting: Internal halogen + control panel blue LED
• Heat Zone Dividers: Yes
• Drip Tray: Slide-out, welded
• Exterior: Marine-grade 316 stainless steel body and cart

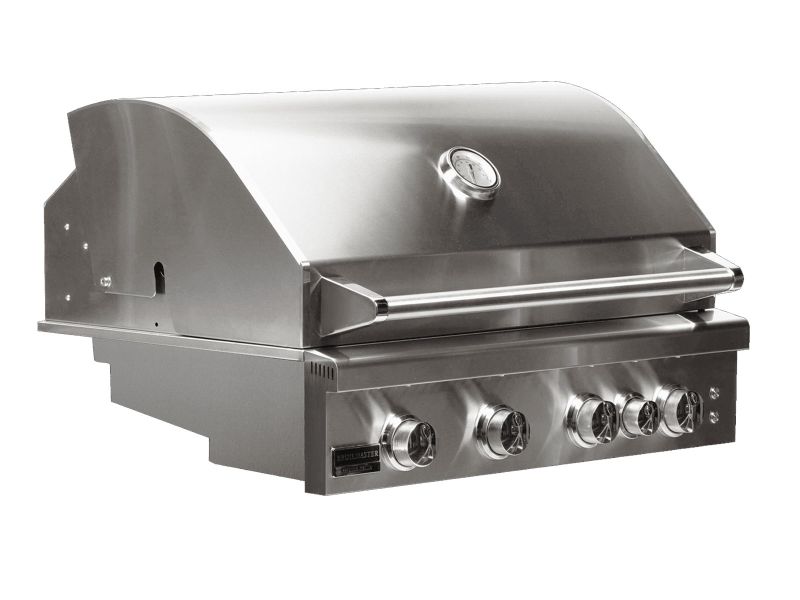

• Dimensions: Grill head: approx. 39.5″ W × 25.75″ D × 21.25″ H (see manual for full cart dimensions)
• Made in the USA

Warranty

• Lifetime limited warranty on stainless steel housing, grids, burners, and select components (see spec sheet for full terms)
• Coverage includes cart, side burner housings, and warming rack

Compliance Notes

• Rated per ANSI Z21.58 / CSA 1.6 standards for outdoor gas appliances
• Includes California Proposition 65 warning where applicable
• Designed for hybrid use—built-in or on cart
