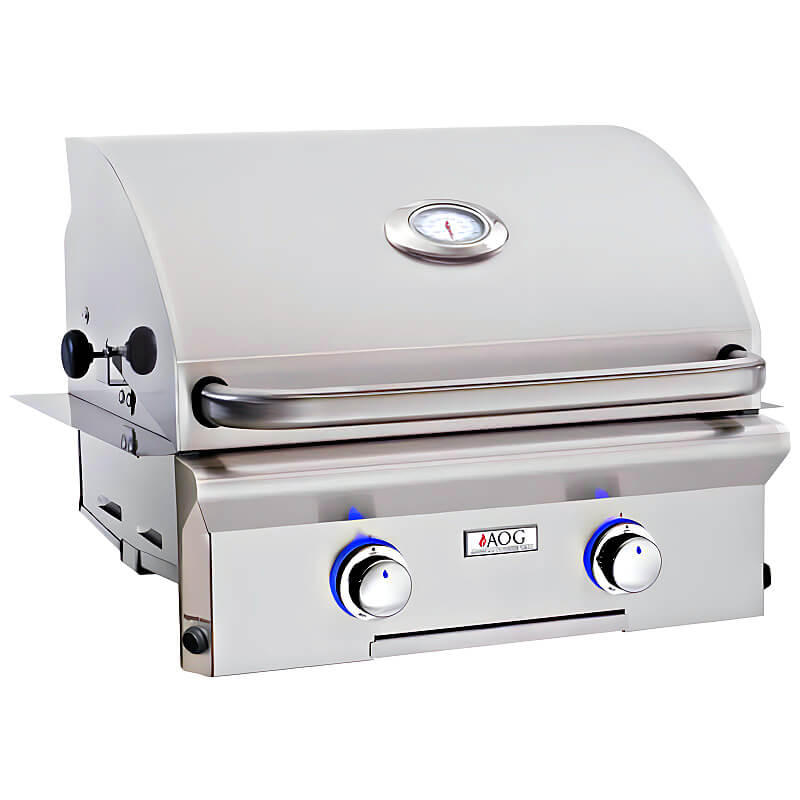

American Outdoor Grill L Series 24″ Built-In Gas Grill w/ Rotisserie (Model 24NBL)

Description

Discover exceptional performance in a compact design with the American Outdoor Grill (AOG) L Series 24″ Built-In Gas Grill with Rotisserie. Crafted in the USA from durable 304 stainless steel and featuring Diamond Sear cooking grids, this grill delivers precision searing and long-lasting reliability. Equipped with a powerful rotisserie system and smart lighting, it's tailored for sophisticated outdoor kitchens.

Key Features

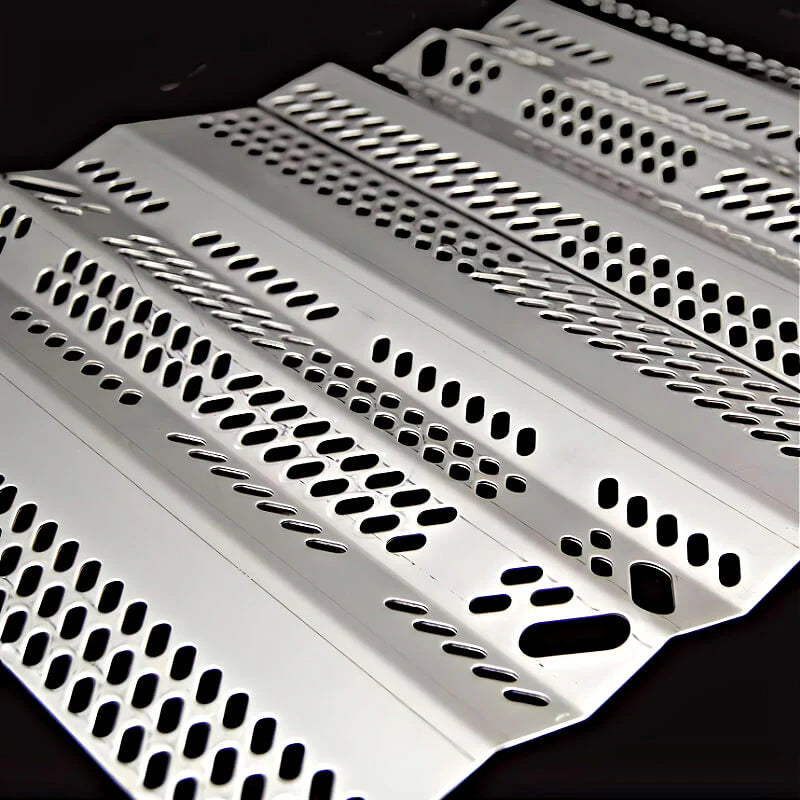

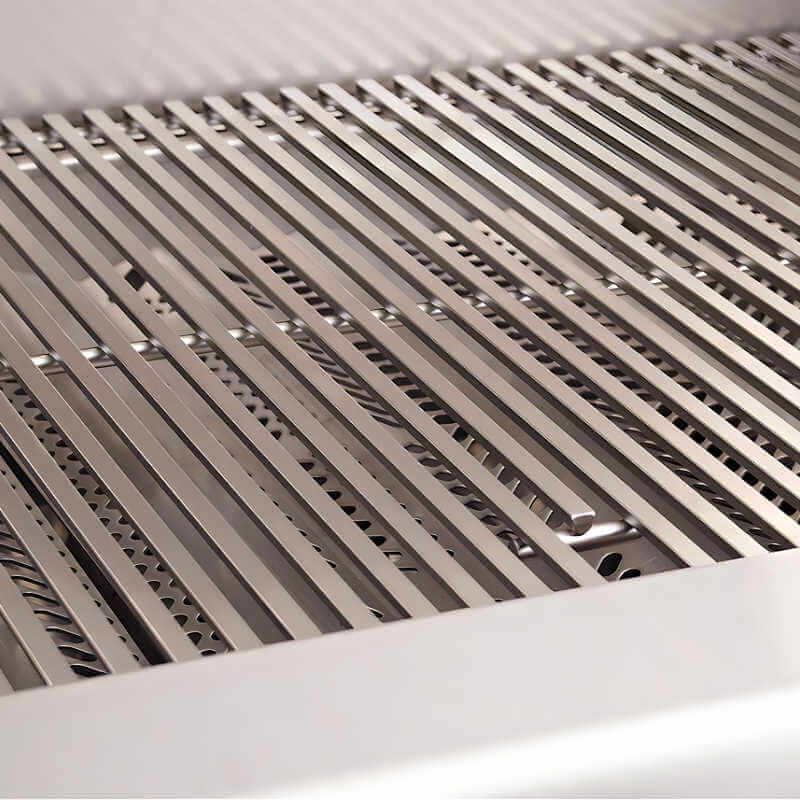

• 304 stainless steel construction with Diamond Sear grids and stainless vaporizer panels

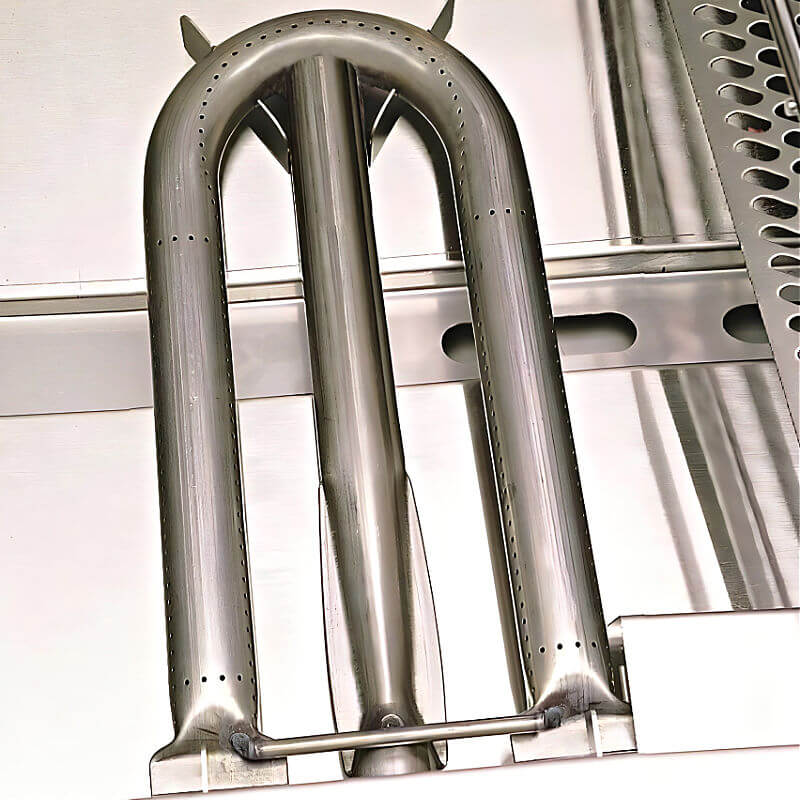

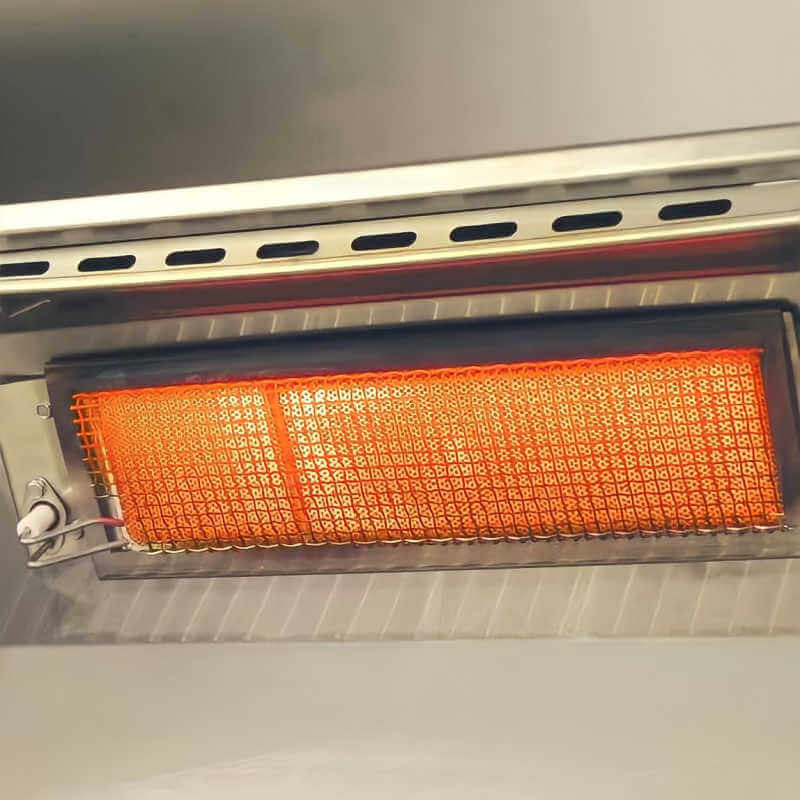

• Two 16,000 BTU U-burners (32,000 BTU total) plus 10,000 BTU infrared back-burner with included rotisserie kit
• Push-button electronic ignition powered by 120 VAC for consistent starts

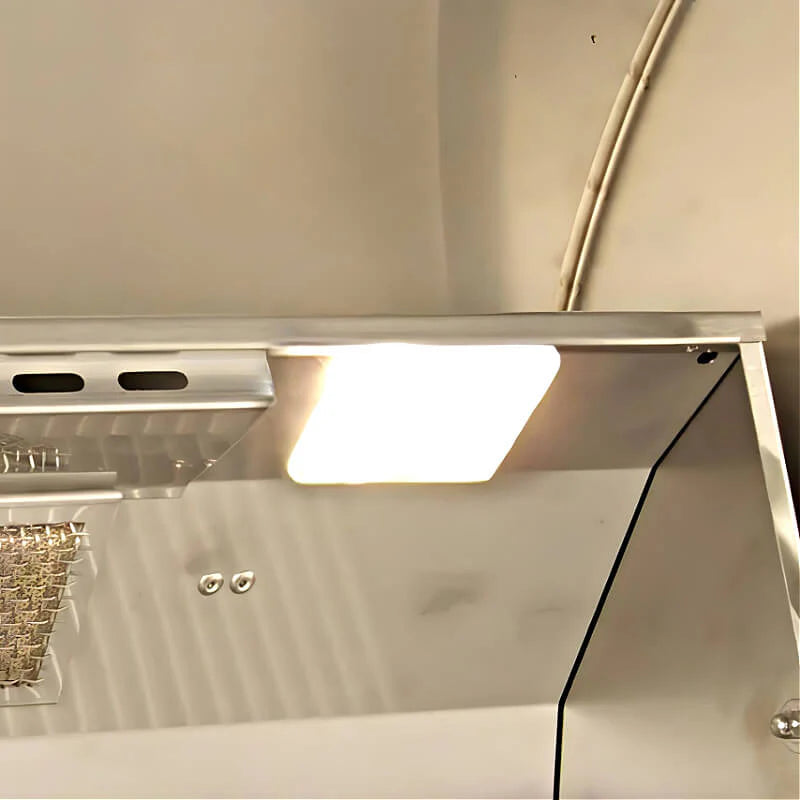

• Integrated halogen interior lighting and halogen-powered lighting for grilling at night
• Solid brass valves for precise heat control and long life

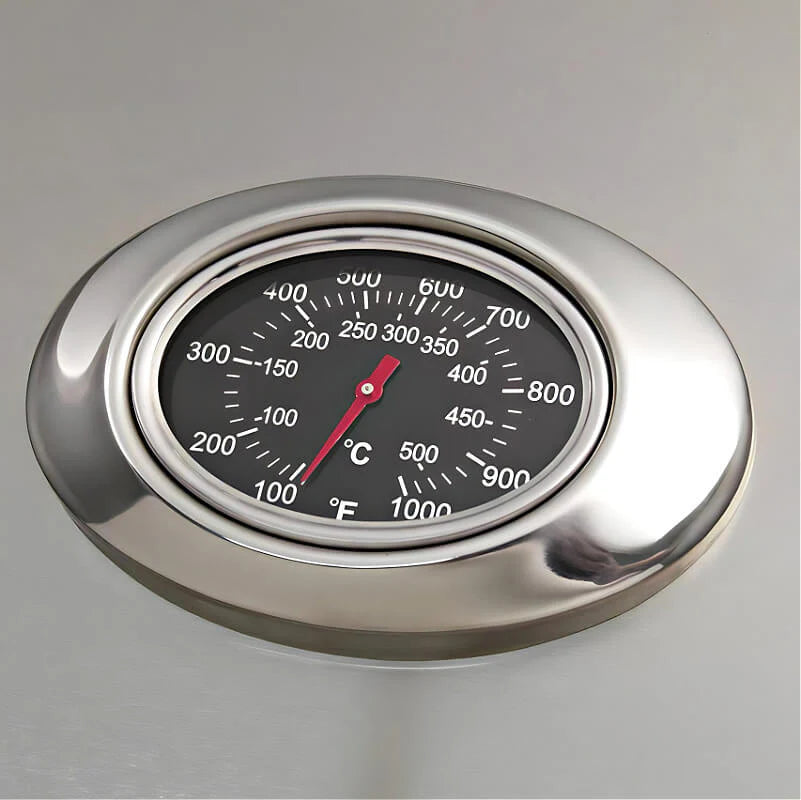

• Analog hood thermometer with polished bezel for accurate temperature monitoring
• Slide-out drip collection system for easy cleanup

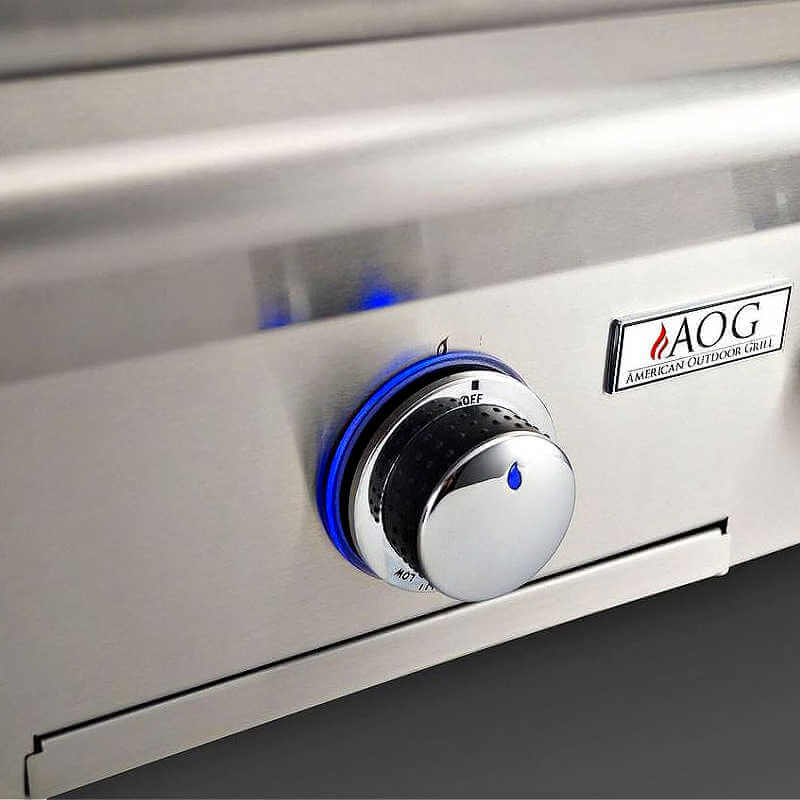

• Audience-ready design with back-lit control knobs
• Natural Gas model with Propane conversion kit included
• Proudly made in the USA

Specifications

Model: L Series 24NBL
Fuel Type: Natural Gas (LP conversion included)
Exterior Material: 304 Stainless Steel
Number of Burners: 2 (Main) + 1 (Infrared Back-Burner)
Main Burner BTU: 32,000 BTU
Rear Infrared Burner BTU: 10,000 BTU
Cooking Surface: 432 sq in (24″ × 18″)

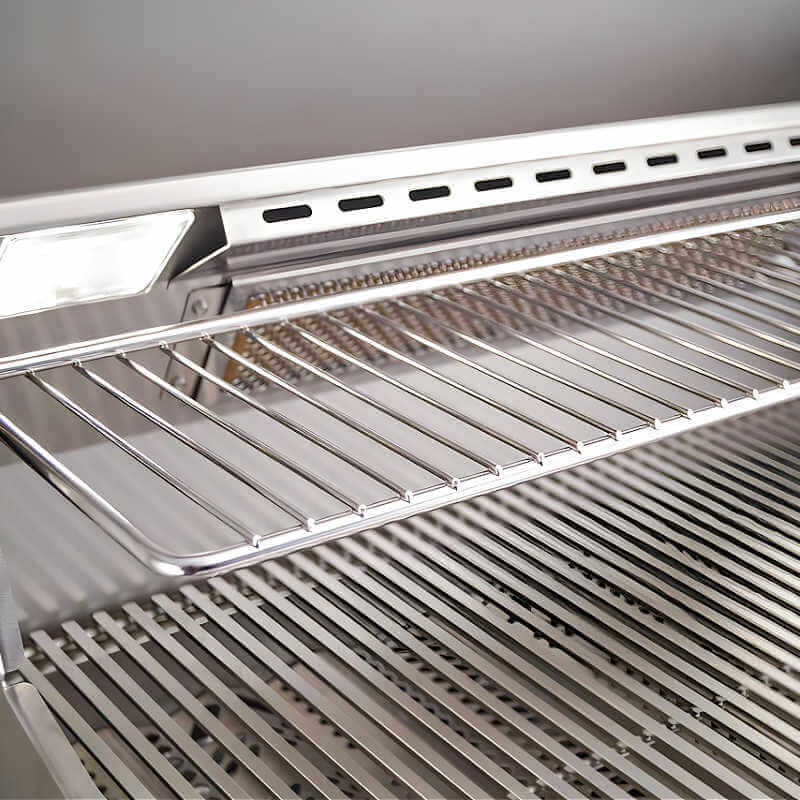

Warming Rack Area: 116 sq in
Total Cooking Area: 548 sq in
Ignition Type: 120 VAC Push-Button Electronic Ignition
Lighting: Internal halogen lighting controlled by side button
Analog Hood-Mounted Thermometer
Overall Dimensions: 28″ W × 26.25″ D × 20.07″ H
Cut-Out Dimensions: 24.5″ W × 19.5″ D × 8.5″ H
Made in USA: Yes

Certifications

Designed to meet applicable safety and installation codes (ANSI standards via AOG).

Warranty

• Lifetime limited warranty on stainless steel burners
• 10-year limited warranty on remaining components
• 3-year limited warranty on infrared burners & vaporizer panels
• 1-year coverage on ignition systems and accessories

User Manual / Spec Sheet

Installation manual PDF
